The Post Clamp Bracket has been designed to use existing Lighting Poles to suspend Security Cameras and Speakers. Most ‘Overground’ Stations are lit by Lighting Poles that usually fall into the two main diameters of either 3 inch or 3½ inch. Other diameters can be catered for but will fall into our bespoke category. We have versions that take the Dennard DD504-200 or the Dennard 2010 Security Cameras and versions that support the standard Column Speakers or the MSP-5 or PAC-5 Series Speakers. The Unique Sheet Metal design is light to install and bites into the pole to give more grip the heavier the load. This bracket design has a high resistance to vertical slippage. The material used is ’Zintec’, a pre-treated steel that is hot zinc sprayed during the manufacturing cycle and offers excellent protection against knocks and corrosion. The final finish is a powder coating in a low smoke,zero halogen to comply with LUL safety regulations. All fixings used are 8.8 grade, high tensile BZP. The bushed threaded inserts are zinc plated and the threads are masked before painting.

STANDARD POST CLAMP BRACKETS

3 inch STANDARD POST CLAMP Part No. 231105-200 3.5 inch STANDARD POST CLAMP Part No. 231105-210

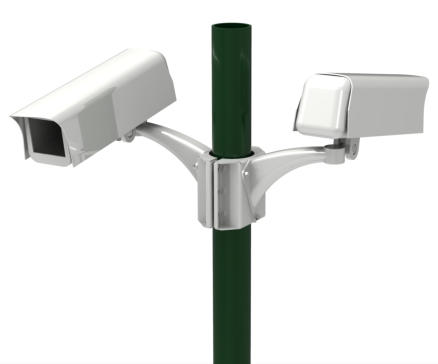

The 3” or 3.5” Standard Post Clamp

3 inch SOUND PROJECTOR POST CLAMP Part No. 231105-250 3.5 inch SOUND PROJECTOR POST CLAMP Part No. 231105-260

The 3” or 3.5” Sound Projector Post Clamp

3 inch DENNARD 2010 POST CLAMP Part No. 231105-310 3.5 inch DENNARD 2010 POST CLAMP Part No. 231105-320

The 3” or 3.5” Dennard 2010 Camera Post Clamp
