STANDARD DROP BRACKETS

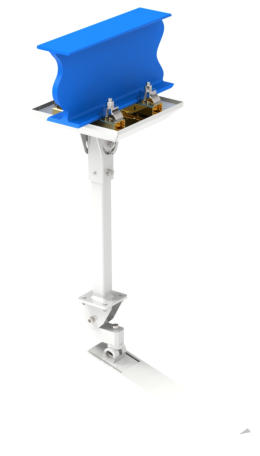

The Drop Bracket is our most popular model. Designed initially to suspend the Dennard D504 Security Camera from tunnel rings and canopies. It has since developed into a versatile all rounder. With adaptor brackets to interface with most communication and security equipment this bracket can be suspended with a drop of up to 2 metres from roof height. Being manufactured from square hollow section the bracket can be easily cut down on site, this will require the addition of an 11 mm hole drilled to suit. We would recommend painting all cut surfaces with cold galvanising paint. The pre-treatment is a zinc plate for protection against knocks and corrosion and the final finish is a powder coating in a low smoke, zero halogen to comply with LUL safety regulations. All fixings used are 8.8 grade, high tensile BZP. Structural Analysis has proven the load rating on the standard 1 metre bracket is in excess of 450 Kg. Please Note that we do not specify the fixings required to attach the bracket to existing metalwork / brickwork. This is the sole responsibility of the contractor.
500 mm STANDARD DROP BRACKET Part No.151105-401 1 METRE STANDARD DROP BRACKET Part No.151105-501 2 METRE STANDARD DROP BRACKET Part No.151105-601
There are now three lengths available at 500mm, one metre and two metres. The pivoting head offers up to 180° of movement allowing fixing to vertical surfaces if required. The locking mechanism gives the Drop Bracket it’s required rigidity. We have allowed for an additional safety lock to prevent slippage of the pivot. Wiring runs are again accommodated at the top and bottom of the bracket with tapped holes for 25mm conduit fixing. These conduit holes will be capped as standard. The Drop Rod may be cut down on site to suit—an 11mm hole will need to be drilled to re- attach to the top section. The 500mm Drop Bracket has a gross weight of 4.2 Kg, the 1 Metre Drop Bracket has a gross weight of approximately 6.5 Kg and the 2 metre Bracket 10 Kg. The maximum dead load carrying capacity is 450 Kg. It is advised to perform structural calculations on the bracket, to include load and environmental conditions to comply with L.U.L. safety regulations. The bracket is usually supplied in White (RAL 9016—Traffic White) to match the Security Camera and Speaker or Grey (NCS 6502-R) to match most other equipment, alternate colours are available on application. The bracket is zinc plated before powder painting to give good protection against corrosion. The bracket, when correctly fixed complies to the IP54 standard BS EN 60529 for water and dust ingress.

Download the

data sheet

ACCESSORIES FOR THE STANDARD DROP BRACKET
DOUBLE CAMERA BRACKET Part No.151105-036

Download the

data sheet

SINGLE BOSCH UHO CAMERA BRACKET Part No.151105-330
The Dennard D504 Security Camera

Download the

data sheet

The Bosch UHO Security Camera
DOUBLE BOSCH UHO CAMERA BRACKET Part No.151105-331

Download the

data sheet

To achieve the assembly on the left you will need the Standard Drop Bracket and the Double Bosch UHO Camera Bracket 151105-331. This assembly is for suspending two Bosch UHO Cameras from the Standard Drop Bracket.
The Bosch UHO Security Camera
AXIS DOME CAMERA BRACKET Part No.151105-335

Download the

data sheet

The Axis Dome Security Camera
To achieve the assembly on the left you will need the Standard Drop Bracket and the Adaptor for Axis Dome Camera 151105-335 ( As shown above). This assembly is for suspending a single Axis Dome Camera Camera, using the Axis T94H01P Conduit Back Box from the Standard Drop Bracket.
VERINT V4320 DOME CAMERA BRACKET Part No.151105-320

Download the

data sheet

The Verint V4320 Dome Security Camera
To achieve the assembly on the left you will need the Standard Drop Bracket and the Adaptor for Verint V4320 Dome Camera 151105-320. This assembly is for suspending a single Verint Dome Camera from the Standard Drop Bracket.

Download the

data sheet

The BOSCH FlexiDome 5000 HD Security Camera
To achieve the assembly on the left you will need the Standard Drop Bracket and the 1.5” NSP Adaptor for Bosch FlexiDome Cameras   151105-215. This assembly is for suspending a single Bosch Dome Camera from the Standard Drop Bracket but will suit any Dome Camera that uses the 1.5” NSP pipe fitting.
BOSCH FLEXIDOME CAMERA BRACKET Part No.151105-215
SINGLE COLUMN SPEAKER BRACKET Part No.151105-020

Download the

data sheet

The Single Column Speaker Bracket
To achieve the assembly on the left you will need the Standard Drop Bracket and the Single Column Speaker Bracket Part No. 151105-020. This assembly is for suspending a single Penton MCS 20  Column Speaker from the Standard Drop Bracket.
DOUBLE COLUMN SPEAKER BRACKET Part No.151105-021

Download the

data sheet

The Double Column Speaker Bracket
To achieve the assembly on the left you will need the Standard Drop Bracket and the Double Column Speaker Bracket Part No. 151105-021. This assembly is for suspending two Penton MCS 20  Column Speakers from the Standard Drop Bracket.
FOUR WAY COLUMN SPEAKER BRACKET Part No.151105-022

Download the

data sheet

The Four Way Column Speaker Bracket
To achieve the assembly on the left you will need the Standard Drop Bracket and the Four Way Column Speaker Bracket Part No. 151105-022. This assembly is for suspending four Penton MCS 20  Column Speakers from the Standard Drop Bracket.
SINGLE SPEAKER BRACKET FOR MSP-5 & PAC 15 Part No.151105-050

Download the

data sheet

The Single Speaker Bracket for MSP-5 & PAC 15 Speakers
To achieve the assembly on the left you will need the Standard Drop Bracket and the Single Speaker Bracket for MSP-5 & PAC 15 Part No. 151105-050 This assembly is for suspending a single CES Audio MSP-5 or a MEDC PAC 15 Speaker from the Standard Drop Bracket. This Bracket will suit any projection speaker that has a 3 hole fixing at either 30 mm or 30.5 mm centres.
DOUBLE SPEAKER BRACKET FOR MSP-5 & PAC 15 Part No.151105-051

Download the

data sheet

The Double Speaker Bracket for MSP-5 & PAC 15 Speakers
To achieve the assembly on the left you will need the Standard Drop Bracket and the Double Speaker Bracket for MSP-5 & PAC 15 Part No. 151105-051 This assembly is for suspending a two CES Audio MSP-5 or MEDC PAC 15 Speakers from the Standard Drop Bracket. This Bracket will suit any projection speaker that has a 3 hole fixing at either 30 mm or 30.5 mm centres.
FOUR WAY SPEAKER BRACKET FOR MSP-5 & PAC 15 Part No.151105-052

Download the

data sheet

The 4 Way Speaker Bracket for MSP-5 & PAC 15 Speakers
To achieve the assembly on the left you will need the Standard Drop Bracket and the 4 Way Speaker Bracket for MSP-5 & PAC 15 Part No. 151105-052 This assembly is for suspending 4 off CES Audio MSP-5 or MEDC PAC 15 Speakers from the Standard Drop Bracket. This Bracket will suit any projection speaker that has a 3 hole fixing at either 30 mm or 30.5 mm centres.
FIVE WAY SPEAKER BRACKET FOR MSP-5 & PAC 15 Part No.151105-053

Download the

data sheet

The 5 Way Speaker Bracket for MSP-5 & PAC 15 Speakers
To achieve the assembly on the left you will need the Standard Drop Bracket and the 5 Way Speaker Bracket for MSP-5 & PAC 15 Part No. 151105-053 This assembly is for suspending 5 off CES Audio MSP-5 or MEDC PAC 15 Speakers from the Standard Drop Bracket. This Bracket will suit any projection speaker that has a 3 hole fixing at either 30 mm or 30.5 mm centres.
SPEAKER BRACKET FOR PENTON CELL 10BT Part No.151105-064

Download the

data sheet

Speaker Bracket for Penton Cell 10BT Speakers
To achieve the assembly on the left you will need the Standard Drop Bracket and the Speaker Bracket for the Penton Cell 10BT Part No. 151105-064. This assembly is for suspending the Penton Cell 10BT Bi-directional  Speaker from the Standard Drop Bracket.
FIXING CHANNEL FOR WHARTON ELECTRONICS 401A L.E.D. CLOCK Part No.151105-312

Download the

data sheet

The Wharton Electronics 401A.10 LED Clock
To achieve the assembly on the left you will need the Standard Drop Bracket and the Fixing Channel for the Wharton 401A clock Part No. 151105-312. This assembly is for suspending the Wharton 401A clock from the Standard Drop Bracket.
VESA 100 OR PAM ADJUSTABLE ADAPTOR BRACKET Part No. 281105-200

Download the

data sheet

The VESA 100 or PAM Adjustable Adaptor
To achieve the assembly on the left you will need the Standard Drop Bracket and the VESA 100 or PAM Adjustable Adaptor bracket Part No. 281105-200. This assembly is for suspending any monitor or PAM that conforms to the VESA 100 standard from the Standard Drop Bracket.
VESA 200 ADAPTOR BRACKET Part No. 151105-302

Download the

data sheet

The VESA 200 Adaptor Bracket
To achieve the assembly on the left you will need the Standard Drop Bracket and the VESA 100 or PAM Adjustable Adaptor bracket Part No. 281105-200 and the VESA 200 Adapter bracket Part No. 151105-302. This assembly is for suspending any monitor or PAM that conforms to the VESA 200 standard from the Standard Drop Bracket.
TICKET HALL DISPLAY (THID) ADAPTOR BRACKET Part No. 131106-260

Download the

data sheet

The Ticket Hall Display (THID) Adaptor Bracket
To achieve the assembly on the left you will need the Standard Drop Bracket and the VESA 100 or PAM Adjustable Adaptor bracket Part No. 281105-200 and the THID Adapter bracket Part No. 131106-260. This assembly is for suspending any Ticket Hall Display with a 310mm X 310mm fixing configuration (10mm studs) i.e. Infotec TR42P shown from the Standard Drop Bracket.
SPREADER PLATE Part No. 151105-055

Download the

data sheet

The Spreader Plate
To achieve the assembly on the left you will need the Standard Drop Bracket and the Spreader Plate Part No. 151105-055. This assembly is for spreading the load of the Standard Drop Bracket and allowing for the use of Lindapters etc..
ADAPTOR & COVER PLATE Part No. 211105-500 for 200mm Part No. 211105-510 for 300mm

Download the

data sheet

The Adaptor & Cover Plate
To achieve the assembly on the left you will need the Standard Drop Bracket and either the 200mm Adaptor & Cover Plate Part No. 211105-500 or the 300mm Adaptor & Cover Plate Part No. 211105-510. This assembly is for attaching the Standard Drop Bracket to Lindapters and unistrut and covering the arrangement from view.
FOR PRICING PHONE 01903 784242 or E-MAIL sales@lunds.co.uk
FOR PRICING PHONE 01903 784242 or E-MAIL sales@lunds.co.uk
To achieve the assembly on the left you will need the Standard Drop Bracket and the Double Camera Bracket 151105-036. This assembly is for suspending 2 Dennard D504 Cameras from the Standard Drop Bracket. To achieve the assembly on the left you will need the Standard Drop Bracket and the Single Bosch UHO Camera Bracket 151105-330. This assembly is for suspending the Bosch UHO Camera from the Standard Drop Bracket.
Please note that the secondary brackets quoted under their respective part numbers do not include the drop bracket or the suspended equipment. i.e. Cameras, Speakers or VID Units.

Download the

data sheet
